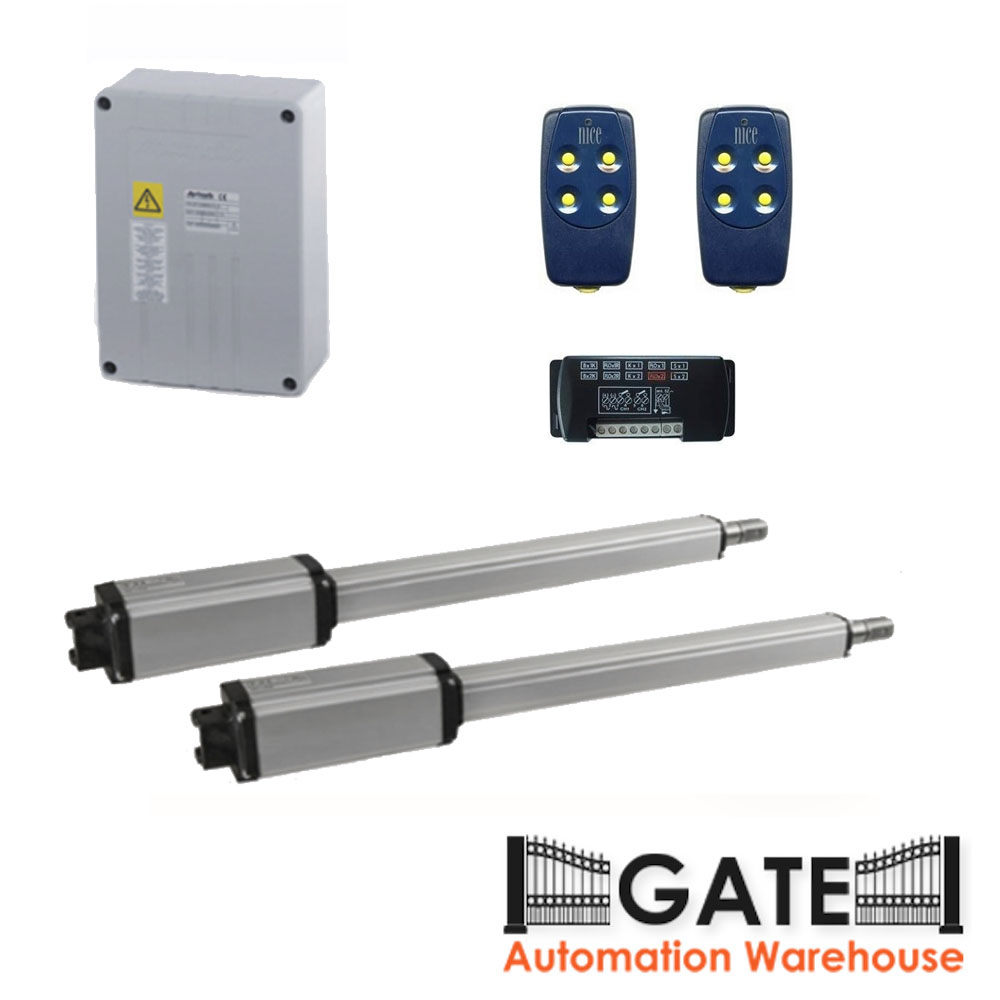

Hydraulic operator for swing gates with leaf up to 1.8m (3 m max with electric lock), ideal for residential and condominium use.
Equipped with anti-crush system with sensitive by-pass valves that can be calibrated during installation.
This immediately cuts the hydraulic pressure in the event of obstruction to ensure maximum system safety.
The operator have front and rear mountings to enable screw assembly also on wood, PVC and aluminium gates.The articulated fork rear flange ensures flexible and sturdy assembly on the pillar.
Manual key release located on the upper part of the operator in the event of mains power supply failure.
Double valve flow adjustment device for regulating gate opening and closing speed.
Compensates for the unbalanced loads created by wind and out of plumb installation of very light and medium gates.
Model C RF with closed position locking for leaf up to 1,8m (for leafs requiring more width, it’s necessary to have an electric lock) and flow adjustment valves.
Power supply : 230V
Absorbed power max. : 250W each motor
Max thrust force : 3850N
Opening time : 20s
Max wing width without electric lock : 1.8m
Max wing width with electric lock : 4.0m
Max rod stroke : 275mm
Anti-crush system : valve by-pass
Protection class : IP55
