EMX 202 Vehicle Probe – Free Entry / Exit Detector
$345.00

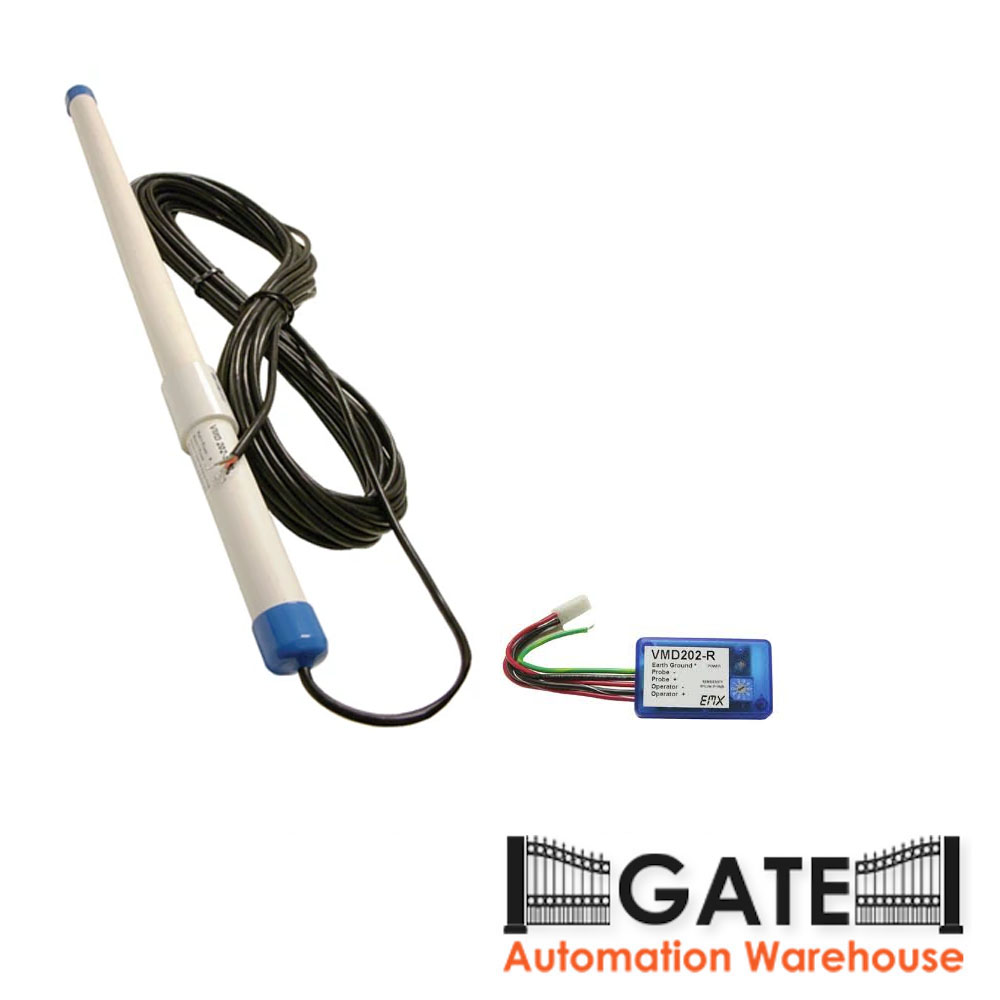

The EMX VMD202 driveway opening probe is a very simple and easily installed device to automatically trigger your gate to open automatically.
- Probe assembly and wire are watertight and direct burial compatible.
- The harness is pre-wired onto lead wire for easy installation – 30m.
- Can be mounted on fence to trigger the gate to open.
- Sensitivity settings on the controller.
12 Month Return to base warranty
| Power | 6-41 VDC or 6-29 VAC (do not exceed 35 V peak) |
| Current Stand-by | 250uA with VMD202-R removed 295uA with VMD202-R in-line |
| Relay | Form C (SPDT) 1A@24VDC; 1A@120VAC |
| Detect Current | 12mA |
| Operating Temperature | -40°C – 82°C (-40°F – 180°F) at less than 96% relative humidity |
| Material | ABS Plastic for VMD202 (controller) PVC for Probe |
| Dimensions | VMD202 (76 x 23 x 70 mm) Probe (25mm Diameter x 610mm long) |
| Probe Cable | 5 wire direct burial PVC |
Out of stock
